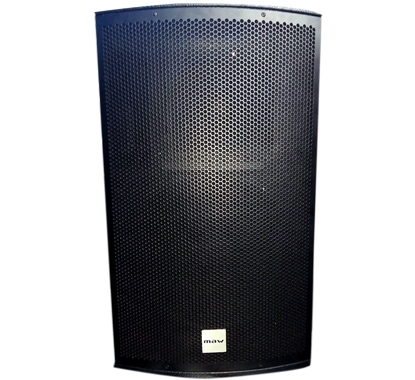

Econ 15
Econ 15
Technical specifications
| Model | ECON 15 |
| Type | Two-way, full range Speaker |
| Frequency Response | 50Hz- 20KHz |
| LOW/Mid Driver | 15” x 1 (Ferrite) |
| HF Driver | 1.3inch x 1(Ferrite) |
| Power handling | 300W(RMS) |
| Program Power | 600W |
| Impedance | 8 Ohm |
| Sensitivity | 100dB |
| Max S.P.L | 135dB |
| Dispersion | 900H x 600V (Rotatable) |
| Cabinet Construction | Birch Plywood |
| Cabinet Finish | Polyurethane coating |
| Input/Output | 2 x NL4R Speakon |
| (mm) Cabinet Dimension(mm) | 440 x 397 x 755 (W x H x D) |
